MP2000-3
Data sheet
Features
Technical data
Engine
IVECO liquid cooled diesel model NA45 (STAGE IIIA).
Power rating 104 KW at 2000 RPM.
Tanks capacity
- fuel tank: 200 litres capacity
- hydraulic oil tank: 200 litres capacity.
Control system for steering and levelling
the machine have manual and automatic control system. When in automatic mode the electronic over hydraulic assembly controls the grade, cross slope, forward and reserve steering.
Frame and extensions
rectangular tube, steel grade S275J2H.
Hydraulic system
- fixed and variable displacement pumps
- over sized oil cooling system suitable for tropical climate.
Hydraulic oil filtration
- 20 micron absolute filter on return line
- 10 micron absolute pressure filter on levelling and steering valves line.
Vibratory system
six hydraulic vibrator circuits with individual variable speed control. The speed is continuously adjustable from 0 to 10000 R.P.M. by suitable hydraulic oil flow regulators. The automatic on-off control for the vibrators is synchronised with the machine forward movement.
Four hydraulic stinger type vibrators.
Crawler tracks
- Three hydraulically powered, gear-driven. Each of them steering and individually eight adjustable. Gear unit reduction rate i= 53.
- Dimensions: 1.553 x 463 x 535 mm. (L x W x H).
Pad width: 250 mm.
Concrete feeding
Hydraulically driven, variable speed concrete charging conveyor. The rubber belt width is 500 mm. The rubber belt speed is continuously adjustable from 0 to 90 m/min.
Water system
tank with 400 litres capacity. Suitable pump for water spraying.
Machine weights
ranging from 10 to 14 ton.s (in the basic three tracks configuration).
Option equipment
- additional hydraulic vibrator circuits
- additional hydraulic vibrators
- fine grade trimmer assembly.
Special configuration
Fourth leg assembly with flat sectional mold and mold for canal, including:
# Two additional hydraulic vibrator circuits with individual variable speed controls
# Four additional hydraulic vibrators
# Steering, levelling, powered fourth leg assy. Complete with crawler track and additional frame, electronic control
# Suitable mold.

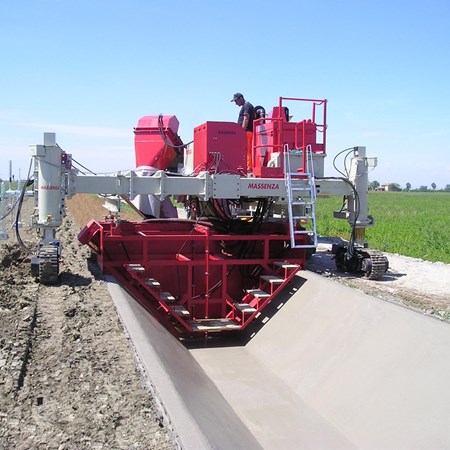

Fourth leg assembly with flat sectional mold and mold for canal.
Fourth leg assembly with flat sectional mold and mold for canal.
